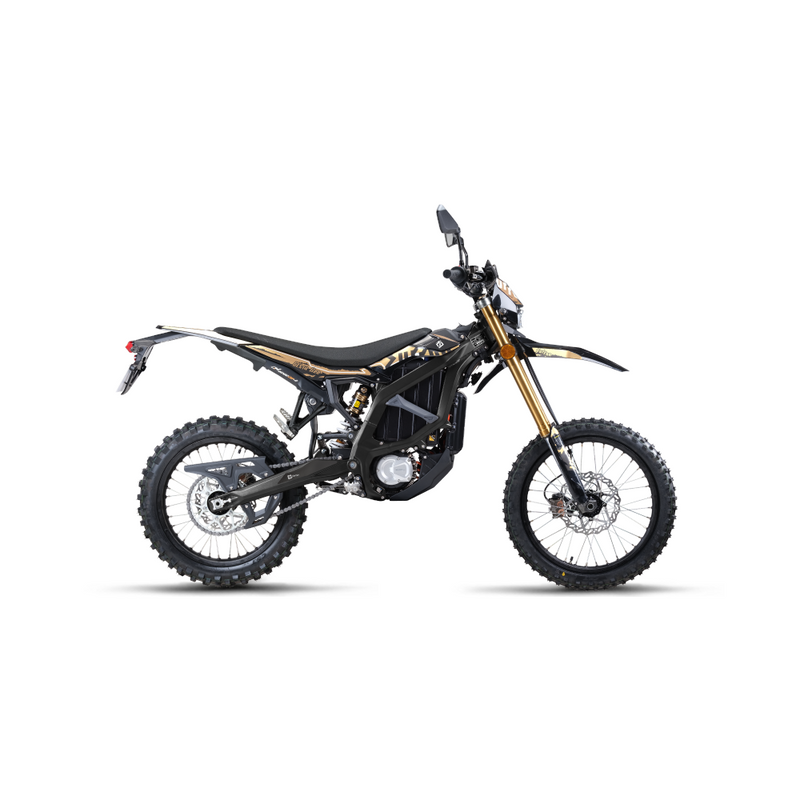

Built for serious off-road performance.
The ULTRA BEE HP delivers exceptional electric power, instant torque, and precise control in a lightweight, forged-aluminum chassis. Its second-generation hairpin-winding motor produces up to 24.5 kW of peak power, accelerating from 0–31 MPH in approximately 1.84 seconds and reaching speeds of up to 59 MPH.
A removable 74V 60Ah lithium-ion battery provides up to 71 miles of range under controlled test conditions. Adjustable suspension, advanced traction control, wheelie control, regenerative braking, and six riding modes allow riders to configure the bike for trails, technical climbs, or high-performance off-road riding.
Performance Highlights
- 59 MPH Top Speed
- 24.5 kW Peak Motor Power
- 520 N·m Maximum Wheel Torque
- 1.84 Seconds 0–31 MPH
- 3.7 Seconds 0–50 MPH
- 74V 60Ah Removable Battery
- Up to 71 Miles Maximum Range
- Approximately 201 lbs Curb Weight
Performance
- Top Speed: Up to 59 MPH
- Peak Power in Turbo Mode: 24.5 kW
- Peak Power in Sport Mode: 21.5 kW
- Maximum Wheel Torque: 520 N·m / 384 ft-lb
- 0–31 MPH: Approximately 1.84 seconds
- 0–50 MPH: Approximately 3.7 seconds
- Maximum Range: Up to 71 miles at 31 MPH
- Riding Modes: Economy, Daily, Sport, Crawl, Reverse, and Turbo
- Throttle Response: Three-level adjustable throttle curve
- Traction Control: Three-level ASR system
- Wheelie Control: Two-level IMU-based system
Motor and Drivetrain
- Motor Type: Permanent-magnet synchronous motor
- Motor Technology: Second-generation hairpin winding
- Controller: MTPA/MTPV field-oriented controller
- Primary Drive: Carbon-fiber-core belt
- Secondary Drive: Chain
- Power Band: Consistent output from 2,000 to 7,000 RPM
- Reverse Assist: Included
Battery and Charging
- Battery Voltage: 74V
- Battery Capacity: 60Ah
- Battery Type: Removable lithium-ion
- Battery Weight: Approximately 47 lbs
- Charging Time: Approximately 2.5 hours from 20% to 80%
- Charger: 1,000W smart charger
- Energy Recovery: Five-level coasting and five-level braking regeneration
Suspension
- Front Suspension: Custom-tuned adjustable fork
- Front Suspension Travel: 9.4 inches
- Front Adjustment: Independent compression and rebound
- Rear Suspension: INTERSECT TR multi-link system
- Rear Shock: Fully adjustable air shock
- Rear Shock Travel: 3.3 inches
- Handlebar Position: Three-level adjustable
- Ground Clearance: 12.4 inches
Brakes and Rider Assistance
- Brake Type: High-rigidity hydraulic braking system
- Brake Control: Progressive one-finger braking response
- Automatic Hold: Electronic incline-hold function
- Tilt Protection: Electronic gyroscope
- Brake Priority: Electronic brake-priority control
- Side-Stand Protection: Included
- Motor Temperature Protection: Included
- Electrical Protection: High-voltage, low-voltage, and overcurrent protection
Frame and Measurements
- Frame Material: Forged aluminum alloy
- Swingarm Material: Forged aluminum alloy
- Curb Weight: Approximately 201 lbs
- Maximum Load: Approximately 331 lbs
- Seat Height: Approximately 35 inches
- Wheelbase: 54.3 inches
- Overall Dimensions: 81.9 × 33.5 × 46.5 inches
- Front Tire: 80/100-19 off-road
- Rear Tire: 100/90-18 off-road

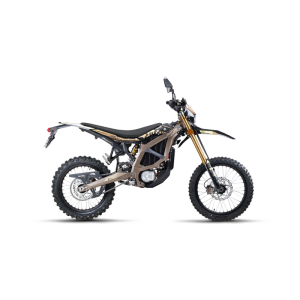

- Available Colors: Carbon Black and Desert Brown
The ULTRA BEE HP is intended primarily for off-road and recreational use. Maximum speed, acceleration, charging time, and range vary according to rider weight, terrain, temperature, riding mode, battery condition, and tire pressure.
