Full-suspension power with genuine motorcycle stopping.

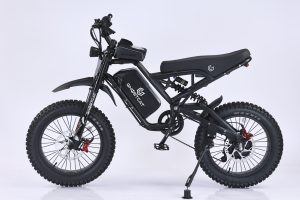

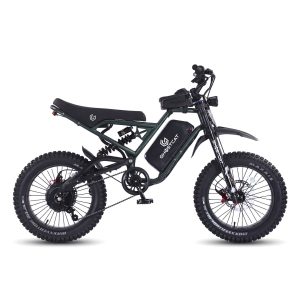

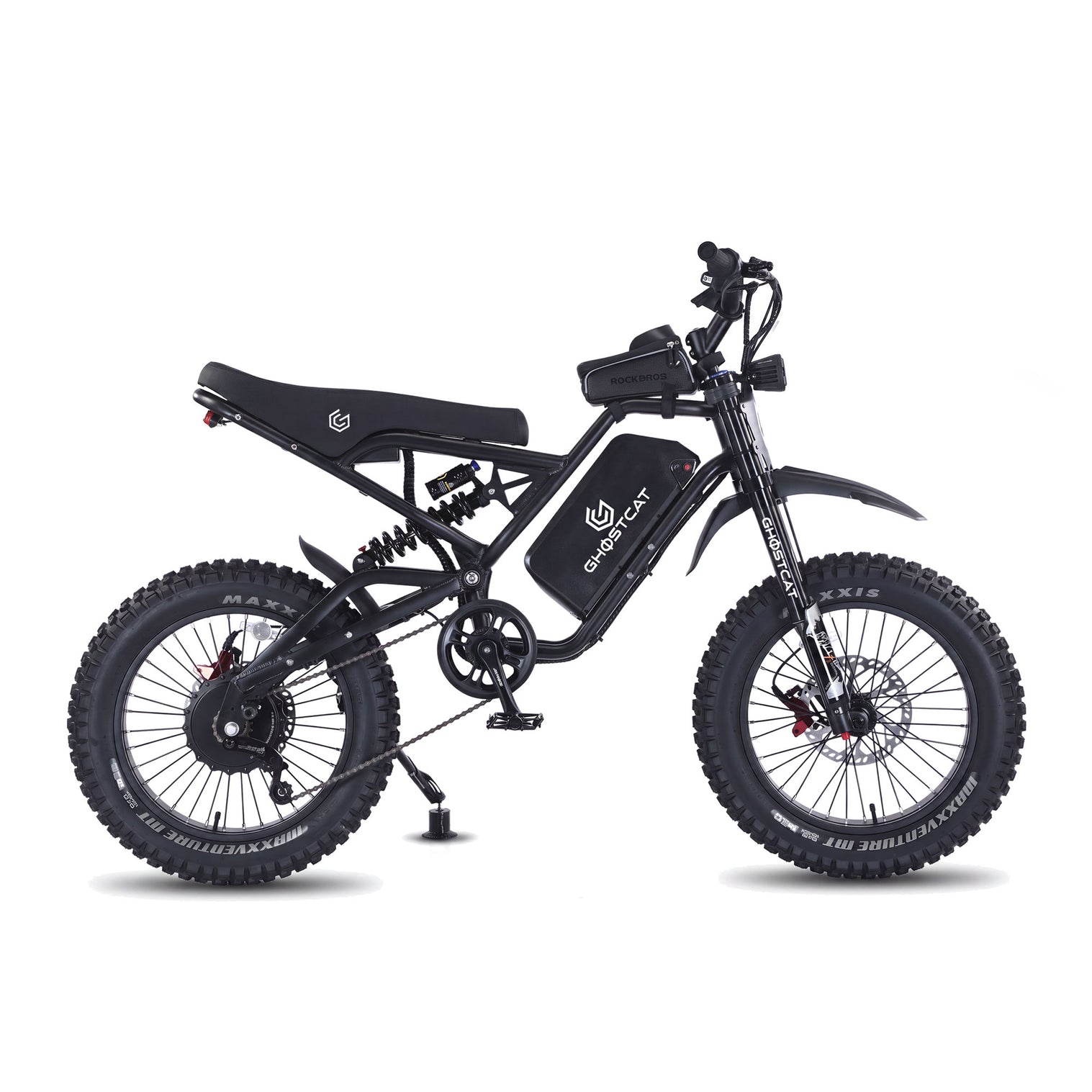

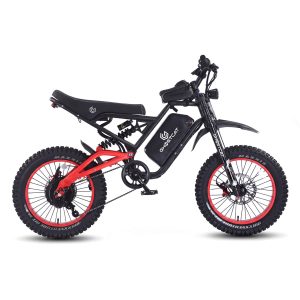

The GhostCat F4X is the fourth-generation flagship of the GhostCat line, built around a 2,200W Hentach steel-geared hub motor that peaks at 3,300W and delivers over 160 Nm of torque. Paired with a 55-amp controller, it reaches speeds of 40+ MPH.

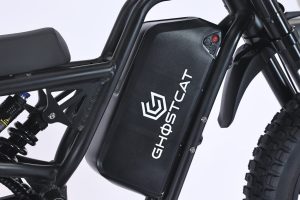

A removable 52v 25Ah battery built on LG lithium cells stores 1,500Wh and returns 30 to 50 miles of range per charge, recharging in 5 to 7 hours. The pack is UL 2271 certified through SGS.
Braking and suspension are where the F4X separates itself from the class. Four-piston hydraulic disc brakes clamp 203mm rotors front and rear, while KKE adjustable suspension — 120mm up front, a 550 lb-rated shock at the rear — keeps the 20×4 Maxxis off-road tires planted on broken ground.
Performance Highlights
- 40+ MPH Top Speed
- 2,200W Nominal / 3,300W Peak Motor
- 160+ Nm Torque
- 52v 25Ah LG Battery
- 1,500Wh Battery Capacity
- 30–50 Miles Maximum Range
- Four-Piston Hydraulic Disc Brakes
- Full KKE Adjustable Suspension
Performance
- Top Speed: 40+ MPH

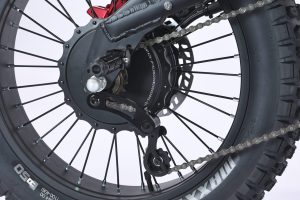

- Motor: Hentach hub motor, steel geared
- Nominal Output: 2,200W
- Peak Output: 3,300W
- Torque: 160+ Nm
- Controller: 55 amp
- Drivetrain: Single speed
- Ride Modes: Throttle and 5-level pedal assist (cadence sensor)
Battery and Range
- Battery Voltage: 52V
- Battery Capacity: 25Ah
- Stored Energy: 1,500Wh
- Cells: LG lithium
- Certification: UL 2271 (SGS tested)
- Removable: Yes
- Charge Time: 5–7 hours
- Maximum Range: 30–50 miles per charge
Suspension and Brakes
- Front Suspension: KKE 120mm adjustable

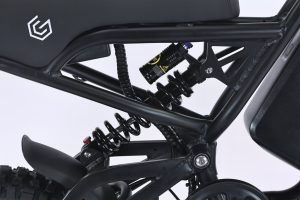

- Rear Suspension: KKE adjustable, rated to 550 lbs

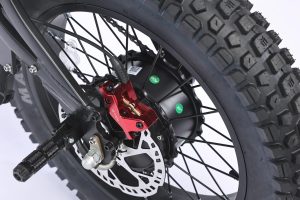

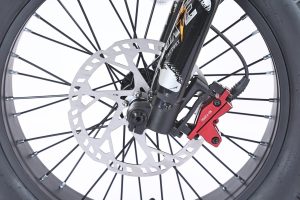

- Brake Type: Hydraulic disc, four-piston
- Rotors: 203mm front and rear
- Terrain Compatibility: Trails, gravel, sand, and pavement
Controls and Features

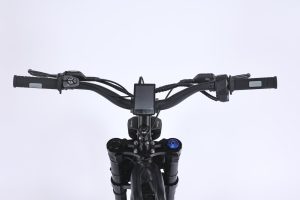

- Throttle: Full twist grip
- Display: Backlit LCD
- Headlight: LED
- Rear Light: Integrated brake light
- Storage: Water-resistant frame bag with TPU window
- Seat: Extended soft touring seat
- Chain Guard: Fully enclosed
- Grips: Anti-skid
Wheels and Construction
- Frame: Aluminum alloy soft-tail
- Tire Size: 20 × 4 inches
- Tire Brand: Maxxis off-road
- Product Weight: 86 lbs
- Maximum Load Capacity: 275 lbs
- Overall Dimensions: 65.7 × 28 × 40.5 inches
- Seat Height: 33 inches
- Rider Age: 18 and older
