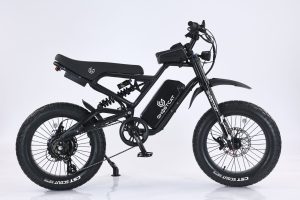

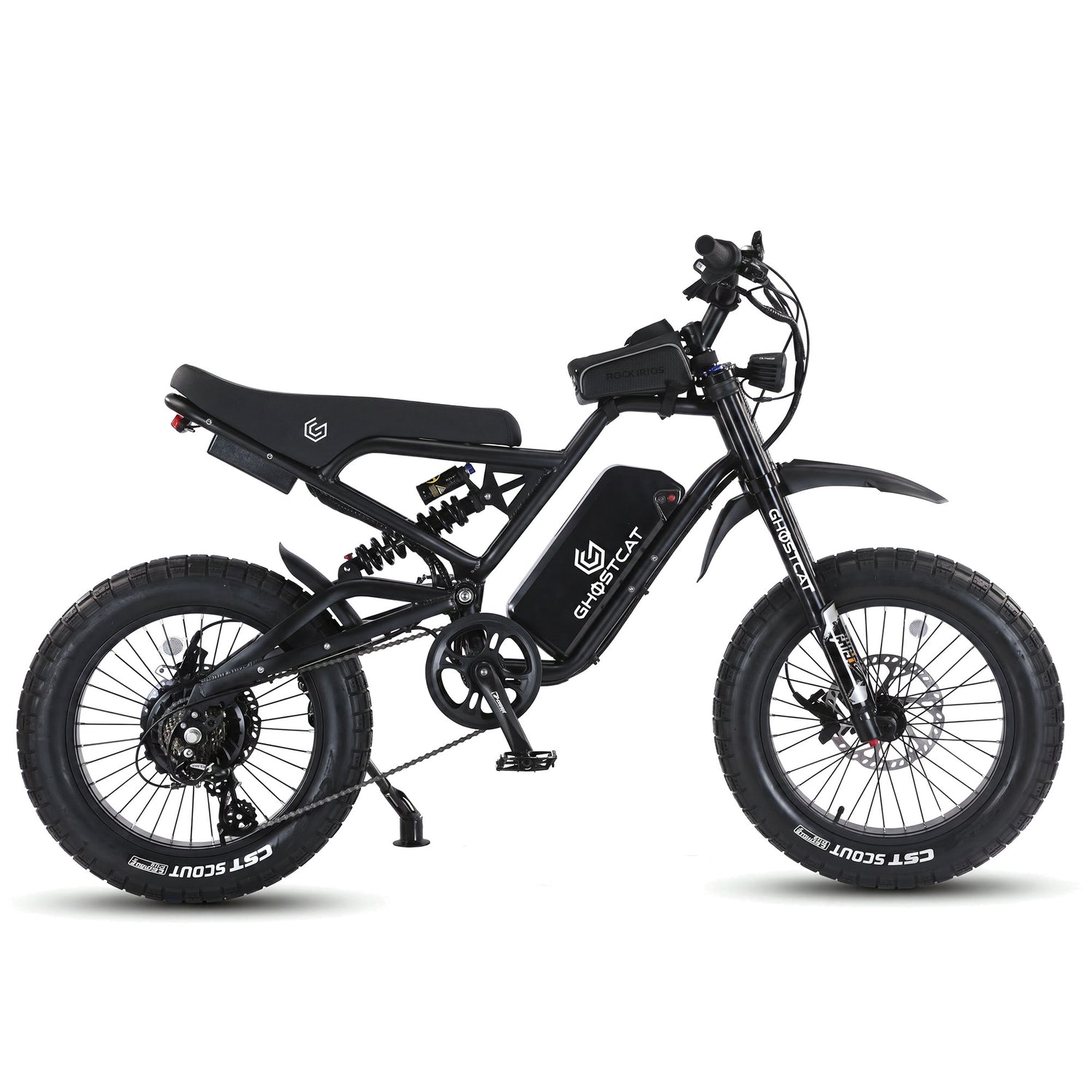

Ghost Cat FX3.2 Pro 48v
Ghost Cat FX3.2 Pro: long-range fat-tire capability with a real gearbox.
The Ghost Cat FX3.2 Pro pairs a 1,500W XOFO steel-geared hub motor with a 45-amp controller for 2,340W of peak output and over 140 Nm of torque, reaching speeds of 35+ MPH. Unlike single-speed e-motos, it runs a 7-speed Shimano drivetrain with finger-dial shifting, so the pedals stay useful across the whole speed range instead of spinning out.
Range comes from a removable 48V 25Ah battery built on LG 21700 cells, storing 1,200Wh and returning 25 to 50 miles per charge depending on speed and terrain. The pack is UL 2271 certified through SGS, sealed in a waterproof case, and recharges in 5 to 7 hours.
The chassis is a 20-inch aluminum alloy soft-tail carrying KKE adjustable suspension — 120mm of damping-adjustable travel up front, a 550 lb-rated shock at the rear — on 20×4 CST Scout Dual Sport tires. Four-piston hydraulic disc brakes on 203mm rotors handle stopping at both ends. At 82 lbs with a 275 lb load rating, it carries a passenger on the extended two-seater without running out of brake or suspension.
Ghost Cat FX3.2 Pro Performance Highlights
- 35+ MPH Top Speed
- 1,500W Nominal / 2,340W Peak Motor
- 140+ Nm Torque
- 48V 25Ah LG 21700 Battery
- 1,200Wh Battery Capacity
- 25–50 Miles Maximum Range
- 7-Speed Shimano Drivetrain
- Four-Piston Hydraulic Disc Brakes
Performance
- Top Speed: 35+ MPH

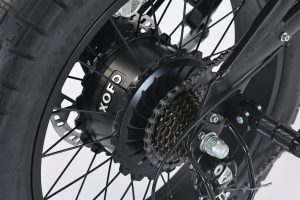

- Motor: XOFO hub motor, steel geared
- Nominal Output: 1,500W
- Peak Output: 2,340W
- Torque: 140+ Nm
- Controller: 45 amp

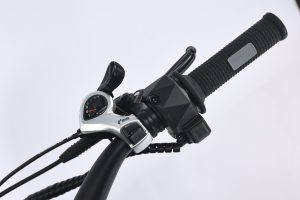

- Drivetrain: 7-speed Shimano, finger-dial shifter

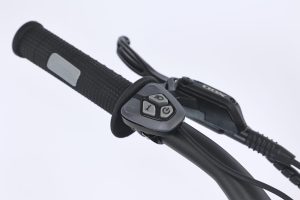

- Ride Modes: Throttle and 5-level pedal assist (cadence sensor)
Battery and Range
- Battery Voltage: 48V
- Battery Capacity: 25Ah
- Stored Energy: 1,200Wh
- Cells: LG 21700
- Certification: UL 2271 (SGS tested)
- Enclosure: Waterproof case
- Removable: Yes
- Charge Time: 5–7 hours
- Maximum Range: 25–50 miles per charge
Suspension and Brakes
- Front Suspension: KKE 120mm adjustable, with damping adjustment

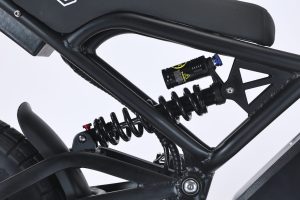

- Rear Suspension: KKE adjustable, rated to 550 lbs

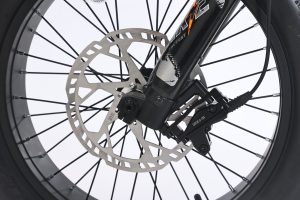

- Brake Type: Hydraulic disc, four-piston
- Rotors: 203mm front and rear
- Terrain Compatibility: Trails, gravel, sand, and pavement
Controls and Features
- Throttle: Full twist grip

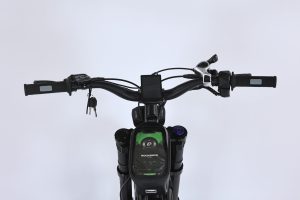

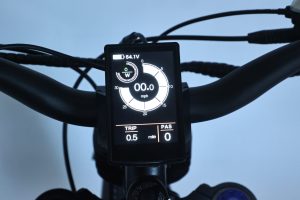

- Display: Backlit LCD

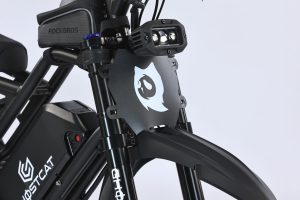

- Headlight: LED
- Rear Light: Integrated brake light

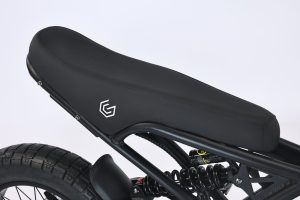

- Seat: Extended two-seater
- Foot Pegs: Foldable rear pegs for a passenger

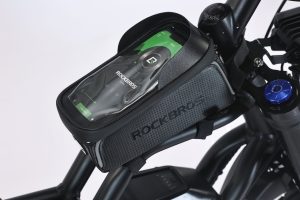

- Storage: Water-resistant frame bag with TPU window
- Chain Guard: Inner chain guard
- Included: Two number-plate covers
Wheels and Construction
- Frame: 20-inch aluminum alloy soft-tail

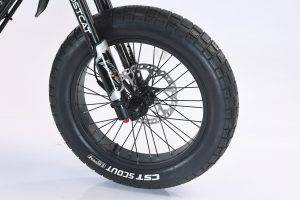

- Tire Size: 20 × 4 inches
- Tire Model: CST Scout Dual Sport
- Product Weight: 82 lbs
- Maximum Load Capacity: 275 lbs
- Overall Dimensions: 65.7 × 28 × 40.5 inches
- Seat Height: 33 inches
- Rider Age: 18 and older
- Warranty: One year on non-wear components
